Quick answer: An emergency assembly point sign marks the safe place where everyone gathers after evacuating a building or site. In Abu Dhabi, the right sign is a green ISO 7010 (E007) “Assembly Point” sign with Arabic and English text, made from weather-proof aluminium or reflective material, and fixed at a clearly visible height away from the building. At Point to Point Advertising Designs LLC, we design, print and install these signs from our own workshop in Musaffah, Abu Dhabi.
Most people never notice an assembly point sign until the fire alarm rings. That is exactly when it matters. When a hundred staff walk out of a building at once, nobody should be asking “where do we go?” A good sign answers that question in one second, in two languages, from across a car park.
I have been asked about these signs many times by HSE officers, facility managers and site engineers here in Abu Dhabi, so I wanted to put everything in one simple guide.
What is an Emergency Assembly Point Sign?
An emergency assembly point (also called a muster point or fire assembly point) is a pre-agreed safe area where people gather after an evacuation. The sign tells everyone where that area is, so the fire warden can do a head count and confirm that no one is left inside.

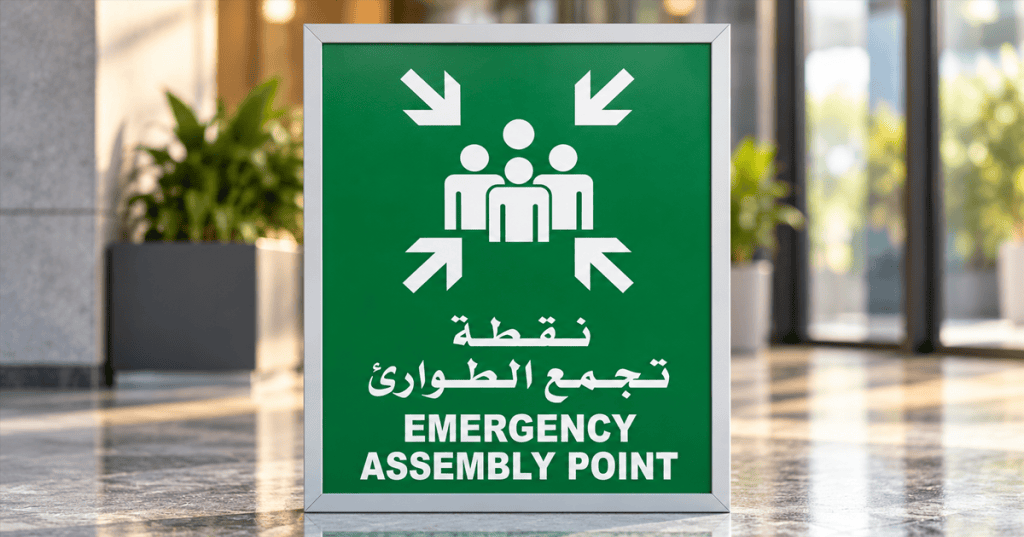

The internationally recognised symbol is ISO 7010 E007 โ Assembly Point: white arrows pointing inward to a group of people, on a green background. Green means “safe condition” in the ISO safety colour system, which is why exit signs and first aid signs are also green.
Who Needs Assembly Point Signs in Abu Dhabi?
Almost every workplace with an evacuation plan needs at least one clearly marked assembly point. We regularly make them for:
- Offices, towers and commercial buildings in Abu Dhabi city, Al Reem Island and Khalifa City
- Factories and warehouses in Musaffah, ICAD and KEZAD
- Construction sites, labour camps and project offices
- Schools, nurseries, clinics and hospitals
- Malls, hotels, restaurants and retail outlets
- Oil & gas and utility facilities with strict HSE requirements
Civil Defence inspectors, main contractors’ HSE teams and facility management companies all look for clear, visible assembly points during inspections and audits. A faded or missing sign is an easy observation to avoid.
What Makes a Good Assembly Point Sign?
1. The correct ISO 7010 symbol
Use the standard E007 pictogram, not a home-made design. Visitors, contractors and staff from many countries recognise the standard symbol instantly.
2. Bilingual Arabic and English text
In the UAE, signs should speak to everyone. We print “ููุทุฉ ุชุฌู ุน ุงูุทูุงุฑุฆ” with “EMERGENCY ASSEMBLY POINT” in a clear, bold font, with correct Arabic shaping โ something that often goes wrong with cheap imported signs.
3. The right size for the viewing distance
A small sign may look fine on a wall but disappears in a big car park. As a simple rule, the further away people will be when they look for it, the bigger the sign needs to be. Common sizes we supply are 400 x 600 mm, 600 x 900 mm and 900 x 1200 mm for open areas.
4. Material that survives the UAE sun
Outdoor signs in Abu Dhabi face 45ยฐC+ heat, humidity, sand and strong UV. We recommend:
- Aluminium composite panel (ACP) or 2โ3 mm aluminium sheet โ rigid, rust-free and long lasting
- Engineering or high-intensity reflective sheeting โ visible at night under car headlights or torchlight
- UV-resistant printing with anti-graffiti lamination โ keeps the green from fading to pale blue
- Photoluminescent (glow-in-the-dark) material โ useful for indoor or low-light routes
5. A strong post or proper wall fixing
Freestanding assembly point signs are usually fixed on a galvanised or powder-coated steel post, either concreted into the ground or bolted on a base plate. Our sister company, Point to Point Metal Industries in Musaffah, fabricates the posts and frames in-house.
Where Should You Place an Assembly Point Sign?
- At a safe distance from the building, away from falling glass or debris
- Away from vehicle routes so emergency vehicles have clear access
- In an open area big enough for everyone who will gather there
- At a height where the sign is visible over parked cars and people (often around 2.0โ2.5 m to the bottom of the sign on a post)
- Matching the location shown on your evacuation plan drawings
If you are not sure, ask your HSE consultant or fire safety engineer to confirm the location first. We are happy to work with them and supply the sign to match their plan.
Related Safety Signs We Supply
Most clients order assembly point signs together with a full safety signage package:
- Fire exit and emergency exit signs (including photoluminescent)
- Fire extinguisher, fire alarm and fire hose reel signs
- First aid, eye wash and emergency shower signs
- PPE mandatory signs and warning signs for construction sites
- Evacuation plan frames and engraved Traffolyte or stainless steel labels
- Road and traffic signs for internal roads and parking
Why Clients Choose Point to Point for Safety Signs
We are a sign board manufacturer based in Musaffah, Abu Dhabi, with our office in Musaffah 36 and manufacturing in Musaffah 39. Because printing, cutting, metal fabrication and installation are all done in-house, we can control quality and deliver quickly.
- KEZAD-approved contractor with experience on government and large contractor projects
- Approved supplier to ADNOC for bollards made to ADNOC specification
- Bilingual design, proof approval before production and site installation by our own team
- Delivery across Abu Dhabi, Al Ain, Al Dhafra, Dubai and the rest of the UAE
Get a Quote for Emergency Assembly Point Signs
Send us your quantity, size and site location (or simply a photo of your old sign), and we will reply with a clear quotation.
Point to Point Advertising Designs LLC
Musaffah 36, Abu Dhabi, UAE
๐ +971 2 621 3369 | +971 56 923 8708
๐ฌ Chat with us on WhatsApp
โ๏ธ info@pointtopoint.ae | signs@pointtopoint.ae
๐ pointtopointuae.com | pointtopoint.ae
In Dubai? Contact our group company Sign Design: +971 4 255 0366 | +971 50 784 7019 | +971 56 894 7391 | info@signdesigndubai.com | signdesigndubai.com
Need posts, frames or bollards? Point to Point Metal Industries: +971 2 550 6510 | +971 54 538 4409 | pointtopointind.com
โถ๏ธ Subscribe to our YouTube channel to see our signs being made and installed, and follow us on LinkedIn for new projects.
Frequently Asked Questions
What colour is an emergency assembly point sign?
Green with white symbols and text. Green is the ISO 7010 colour for safe conditions, the same as exit and first aid signs.
Which ISO symbol is used for an assembly point?
ISO 7010 E007 โ Assembly Point, showing arrows pointing inward toward a group of people.
Do assembly point signs in the UAE need Arabic text?
It is strongly recommended. Bilingual Arabic and English signs are the normal practice in the UAE and are usually expected by clients, consultants and inspectors.
What is the best material for an outdoor assembly point sign in Abu Dhabi?
Aluminium or ACP with UV-resistant print or reflective sheeting, mounted on a galvanised or powder-coated steel post. This handles the heat, sun and sand far better than PVC or plastic.
How long does it take to make assembly point signs?
For standard sizes, production usually takes a few working days after artwork approval. Urgent requests can often be handled faster โ just call or WhatsApp us.
Do you install assembly point signs on site?
Yes. Our team supplies and installs signs with posts, concrete foundations or base plates across Abu Dhabi, and we can arrange installation in Dubai and other emirates.
